Horiba Fluoromax-4 Spectrofluorometer

The Horiba FluoroMax-4 spectrometer is a powerful tool for measuring fluorescence of solids, liquids, powders and thin films. The sample is illuminated by a 150 W xenon, continuous output, ozone-free lamp. The excitation monochrometer has an optical range of 220 – 600 nm blazed at 330 nm. The emission monochromator has an optical range of 290 – 850 nm blazed at 500 nm. The FluoroMax 4 has two detectors. One is a calibrated photodiode reference detector to correct for intensity and temporal fluctuations in the source during excitation scans. The other detector is an R928P red-sensitive PMT used in photon counting mode with signal linearity up to 2 x 106 CPS.

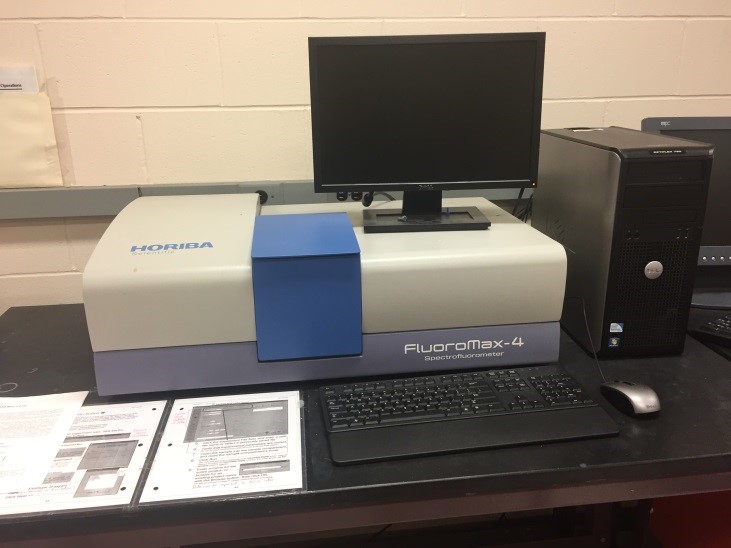

Horiba Fluoromax-4 Spectrofluorometer
Size: 65.6 kB  —  Click to download full sized image
